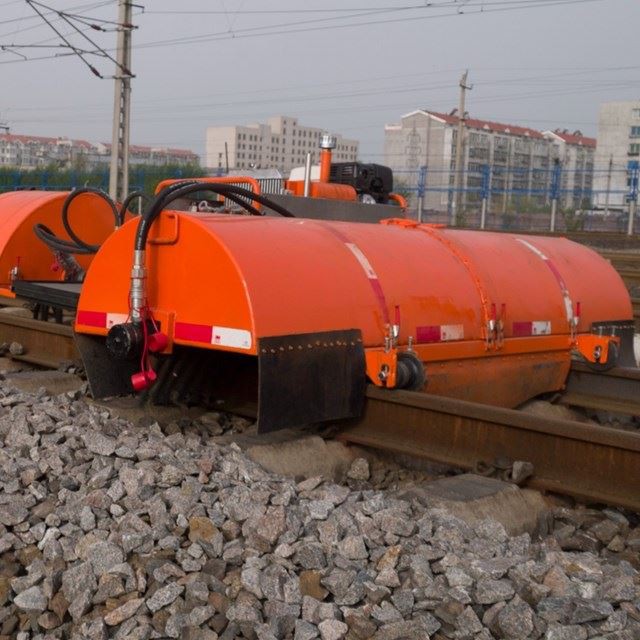

ZYSZ-6 Railway Automatic Hydraulic Sleeper Ballast Cleaning Machine

ZYSZ-6 railway automatic Ballast gravel cleaner

Preview product

ZYSZ-5 railway automatic ballast gravel cleaning machine is used for cleaning the residual ballast on sleeper and excess ballast in track bed after the maintenance or overhaul operations of ballasted track line. Solve the technical problems of manual cleaning after tamping operation.
* Remote control, high efficiency, and simple operation.
* Automatic walking operation, thorough cleaning, reliable safety performance.

Features at glance

Specification

1. Gasoline engine: GX270
2. Power: 5.1KW
3. RPM: 3600r/min
4. Working efficiency: ≥2km/h
5. Output voltage: 12V
6. Max. system pressure: 8MPa
7. Fuel consumption: 1.1l/km
8. Unit weight: 98kg
9. Total weight: ≤464kg
10 Dimension: 2800×2800×1200mm

Contact information

1. Gasoline engine: GX270
2. Power: 5.1KW
3. RPM: 3600r/min
4. Working efficiency:  ≥2km/h
5. Output voltage: 12V
6. Max. system pressure: 8MPa
7. Fuel consumption: 1.1l/km
8. Unit weight: 98kg
9. Total weight: ≤464kg
10 Dimension: 2800×2800×1200mm
