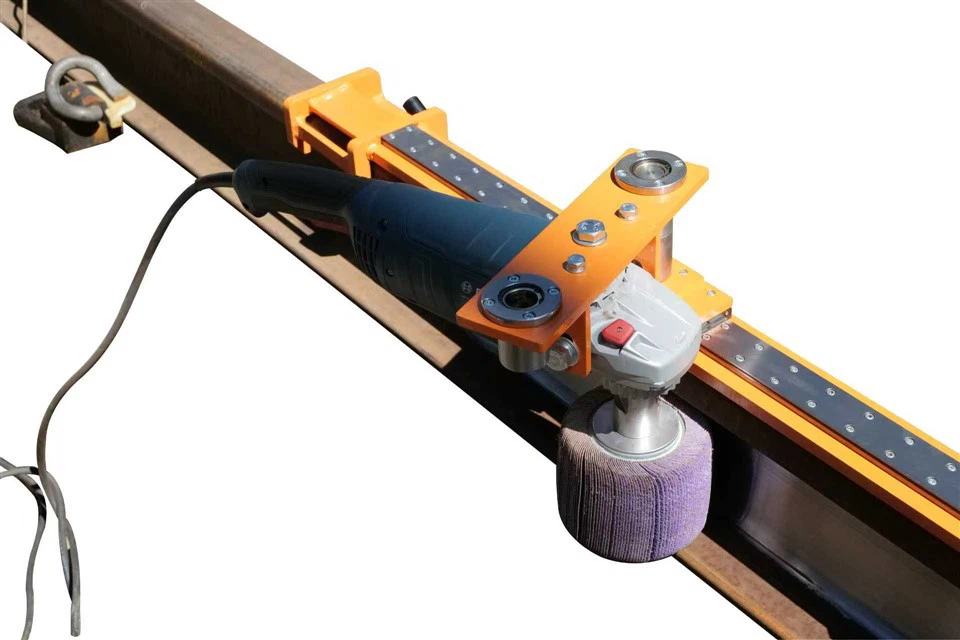

Electric Rail Waist Rust Removal Machine Track Grinder
Our company's electric rail waist rust removal machine can remove rust from the rail web and upper and lower radius arcs of steel rails. The product is a small, mobile tool that is easy to carry, modular, detachable, easy to load and unload, quick to change direction, lightweight, durable, easy to operate, and highly efficient. It can meet the requirements for rail rust removal before flash welding and greatly improves work efficiency.
- Product Introduction
Main Technical Parameters
1. Power: 2.4 kW
2. Main unit speed: 6000r/min
3. Consumable dimensions: 150×32×110mm
4. Rust removal length: 880mm (length can be increased or decreased depending on the flash welding process)
5. Rust removal time on one side: ≤50S
6. Machine weight : 25 kg
7. Dimensions : 1222×315×305mm
Basic Structure and Working Principle

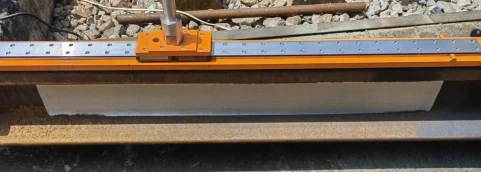

1. Working principle : Powered by an electric motor, the main shaft transmits power to the rust removal wheel, causing it to rotate. The rust removal wheel adheres to the rail web and is pushed back and forth to remove rust from the rail web.

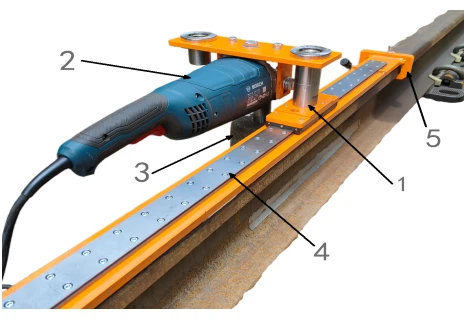

2. The basic structure is shown in the figure :
( This image is for reference only; the actual product shall prevail .)
|
1 Quick-reversing shaft seat |
2 Motor |
3 Rust removal consumables |
|
4 positioning guide rails |
5. Mobile clamps |
