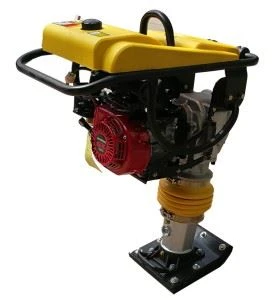

Inter Rail Compactor
Main purpose and scope of use 1) Architecture Backfill compaction around foundation and structure, sidewalk or subgrade, such as early base compaction of ground, kerb, sink, etc. 2) Public utilities Foundation preparation and compaction of pipes, compaction around cable and pipe trenches and utility poles. 3) Municipal Construction Foundation preparation or asphalt repair during maintenance of streets, highways and auxiliary roads
- Product Introduction
1、 Product introduction
1. Main features
1) The engine adopts a four stroke gasoline engine with strong power, reliability and durability.
2) Shock absorbing guide handle, comfortable operation and reduce the labor intensity of the operator
3) It can work in the field and is easy to operate.
4) Compact structure and beautiful appearance.
5) The bottom plate made of nodular cast iron has a longer service life than the punched bottom plate made of wood or iron.
6) Fully enclosed, splash lubrication impact system ensures worry free operation and can be started quickly even in cold weather.
2. Main purpose and scope of use
1) Architecture
Backfill compaction around foundation and structure, sidewalk or subgrade, such as early base compaction of ground, kerb, sink, etc.
2) Public utilities
Foundation preparation and compaction of pipes, compaction around cable and pipe trenches and utility poles.
3) Municipal Construction
Foundation preparation or asphalt repair during maintenance of streets, highways and auxiliary roads.
3、 Main technical parameters
1. Engine type: single cylinder, air-cooled, four stroke
2. Maximum output power 3kw
3. Impact energy 75n. M
4. Take off height 45-70mm
5. Impact times 600-700 times / min
6. Forward speed ≥ 8m / min
7. Transport mass 80 ± 5kg
4、 Transportation and installation
Turn off the engine and fuel switch during transportation.
Confirm that the lifting equipment is capable of lifting the machine (see the instruction nameplate for the weight of the machine).
When lifting, use the central lifting point for lifting.
Fasten the machine to avoid tilting, rolling, falling, etc. and place the machine horizontally (see Figure 7)
Warning: drain the fuel to prevent fuel leakage from the tank. Drain the oil from the gasoline engine. Prevent the oil in the chassis from entering other places.
When installing the machine, install the rollers as shown in Figure 8.
