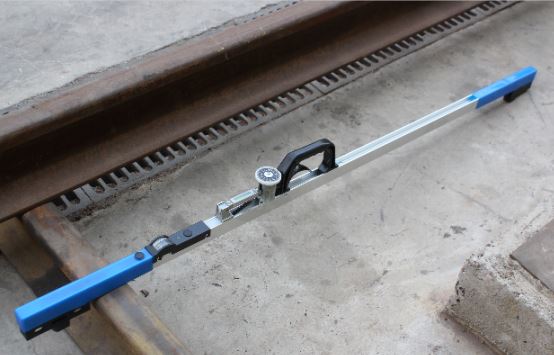

Rail Gauge
The rail gauge is suitable for measuring the gauge level and superelevation of straight lines, curves and turnouts of standard gauge railway. It is an indispensable tool for railway construction and maintenance. It can measure the effective data of track indexes such as track spacing and level.
- Product Introduction
A. Technical Parameters
The Rail Gauge ruler is suitable for measuring the gauge level and superelevation of straight lines, curves and turnouts of standard gauge railway. It is an indispensable tool for railway construction and maintenance. It can measure the effective data of track indexes such as track spacing and level.
1. Scope of application: Running speed ≤160km/h
2. Measurement range: 1410mm--1470mm
3. Horizontal measuring: （-150~+150）mm
4. Measurement accuracy: ±1mm
5. Graduation value: 1.0mm
6. Net weight: 3kg
7. Material: Aluminium alloy
B. Features
The Rail Gauge has the features of simple structure, easy to operate, and stainless steel dividing rule prolong its service life with high precision. It also has the features of light weight and safety insulation, etc..
C. Attention
1. Before measuring, the worker must adjust the dial of gauge, align the zero position of the level bubble, look at the super-high calibration, and then look at the gauge calibration directly above the magnifying glass calibration.
2. When measuring, it is strictly forbidden to pull hard, so as to prevent the collision of the two detections and reduce the errors caused by the measurement.
3. Take good care of the dial on the gauge ruler, once damaged, it will not be able to use.
4. Clean the stain on gauge in time and keep it well.
